・ESXi6.7にTeraTerm等でSSH接続できるようにする方法を知りたい。
こういった疑問に答えます。
本記事の内容
この記事を書いている私は、某SIerに勤務しながら、
WEB系エンジニア・インフラエンジニアに憧れて、プログラミングおよびインフラ技術の勉強をしています。
こういった私が、解説していきます。
私が実機で試したコマンドや画像を載せて書いています。
記事の信頼性担保に繋がると思います。
ESXi 6.7.0 update 3でSSH接続を有効にしてTeraTermから接続する方法
前提条件
今回の環境は、「VMware ESXi 6.7.0 update3」を使います。
デフォルトでは、ESXiサーバにSSH接続はできません。
SSHサービスの起動

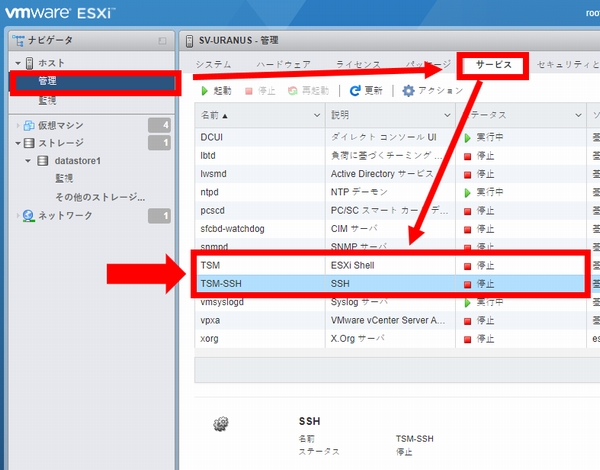

ESXiにログインして、「ホスト>管理>サービス」の画面を開きます。

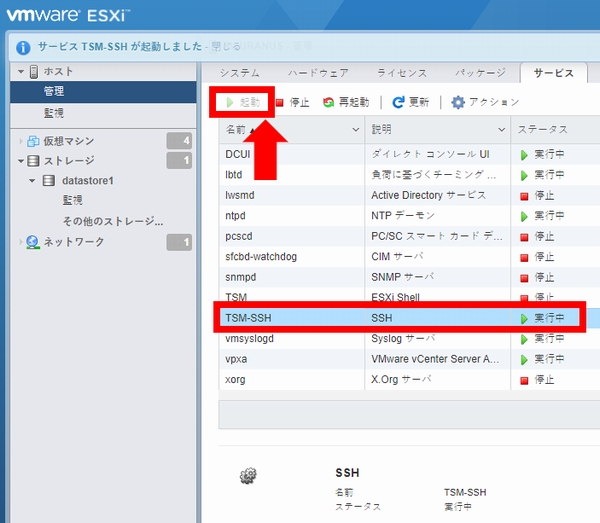

「TSM-SSH」を選択して、「起動」ボタンをクリックすると、SSHサービスが実行中になります。
TeraTermから接続してみる

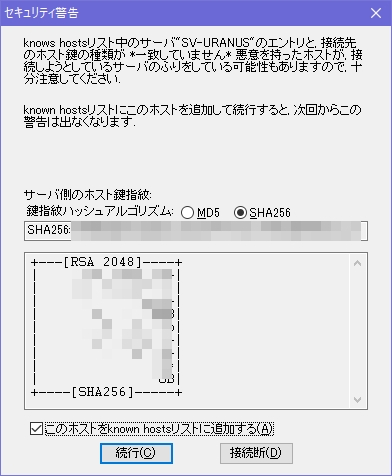

初回は「セキュリティ警告」が表示されます。
初回は、パスワード認証ができません。
「チャレンジレスポンス認証を使う(キーボードインタラクティブ)」を選択します。
「SSH認証チャレンジ」画面で、パスワードを入力します。
ESXiサーバにSSH接続できました
パスワード認証ができるよう「sshd_config」を変更
下記のファイルの内容を確認します。
/etc/ssh/sshd_config
[root@SV-URANUS:/etc/ssh] cat sshd_config
# Version 6.7.2.0 # running from inetd # Port 2200 Protocol 2 HostKey /etc/ssh/ssh_host_rsa_key # Fips mode restricts ciphers to only FIPS-permitted ciphers FipsMode yes # OpenSSH 7.8 switched to af21/cs1, which has been observed to cause # connection drops. Override to earlier values. IPQoS lowdelay throughput # vPP FCS_SSH_EXT.1.7: rekey after 1GB, 1H (instead of default 4GB for AES) RekeyLimit 1G, 1H SyslogFacility auth LogLevel info PermitRootLogin yes PrintMotd yes PrintLastLog no TCPKeepAlive yes X11Forwarding no Ciphers aes256-gcm@openssh.com,aes128-gcm@openssh.com,aes256-ctr,aes192-ctr,aes128-ctr MACs hmac-sha2-256,hmac-sha2-512,hmac-sha1 UsePAM yes # only use PAM challenge-response (keyboard-interactive) PasswordAuthentication no Banner /etc/issue Subsystem sftp /usr/lib/vmware/openssh/bin/sftp-server -f LOCAL5 -l INFO AuthorizedKeysFile /etc/ssh/keys-%u/authorized_keys # Timeout value of 10 mins. The default value of ClientAliveCountMax is 3. # Hence, we get a 3 * 200 = 600 seconds timeout if the client has been # unresponsive. ClientAliveInterval 200 # sshd(8) will refuse connection attempts with a probability of "rate/100" # (30%) if there are currently "start" (10) unauthenticated connections. The # probability increases linearly and all connection attempts are refused if the # number of unauthenticated connections reaches "full" (100) MaxStartups 10:30:100
PasswordAuthentication no
のところを、以下のように変更します。
PasswordAuthentication yes
[root@SV-URANUS:/etc/ssh] vi /etc/ssh/sshd_config
# Version 6.7.2.0 # running from inetd # Port 2200 Protocol 2 HostKey /etc/ssh/ssh_host_rsa_key # Fips mode restricts ciphers to only FIPS-permitted ciphers FipsMode yes # OpenSSH 7.8 switched to af21/cs1, which has been observed to cause # connection drops. Override to earlier values. IPQoS lowdelay throughput # vPP FCS_SSH_EXT.1.7: rekey after 1GB, 1H (instead of default 4GB for AES) RekeyLimit 1G, 1H SyslogFacility auth LogLevel info PermitRootLogin yes PrintMotd yes PrintLastLog no TCPKeepAlive yes X11Forwarding no Ciphers aes256-gcm@openssh.com,aes128-gcm@openssh.com,aes256-ctr,aes192-ctr,aes128-ctr MACs hmac-sha2-256,hmac-sha2-512,hmac-sha1 UsePAM yes # only use PAM challenge-response (keyboard-interactive) PasswordAuthentication yes Banner /etc/issue Subsystem sftp /usr/lib/vmware/openssh/bin/sftp-server -f LOCAL5 -l INFO AuthorizedKeysFile /etc/ssh/keys-%u/authorized_keys # Timeout value of 10 mins. The default value of ClientAliveCountMax is 3. # Hence, we get a 3 * 200 = 600 seconds timeout if the client has been # unresponsive. ClientAliveInterval 200 # sshd(8) will refuse connection attempts with a probability of "rate/100" # (30%) if there are currently "start" (10) unauthenticated connections. The # probability increases linearly and all connection attempts are refused if the # number of unauthenticated connections reaches "full" (100) MaxStartups 10:30:100
再度、SSH接続してみる(今度はパスワード認証)
「プレインパスワードを使う」を選択。
ESXiサーバにパスワード認証でSSH接続できました。

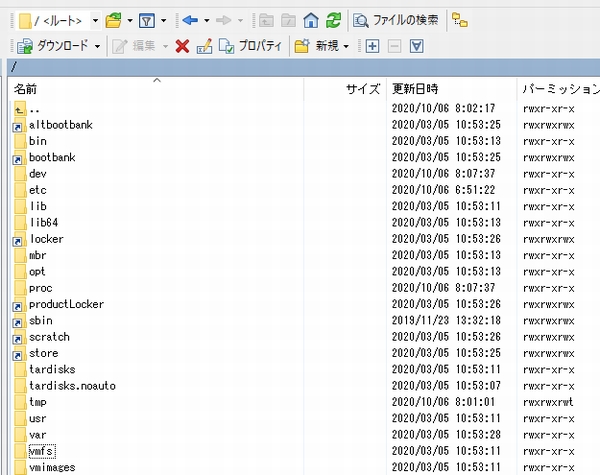

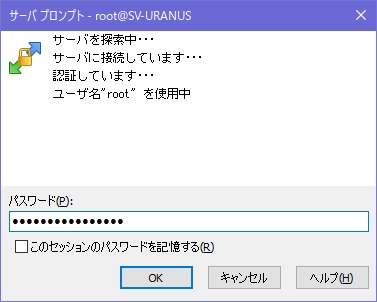

ESXiサーバにWinSCPで接続してみる
WinSCPでも接続できました。
SSHサービスを自動起動に変更
アクション>ポシリー>「ホストと連動して起動および停止します」 に変更しておきます。

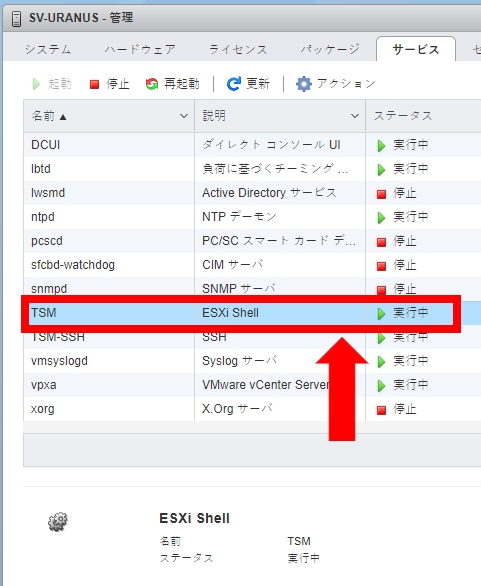

ESXi Shell のサービスも起動する
同じ手順で、「ESXi Shell」サービスも起動させます。
まとめ
今回は、ESXi 6.7 u3 で、SSH接続ができるようにする手順を紹介しました。
