NECルータIX2215の初期設定(その1)スーパーリセット

※[PR]当ブログの記事の中にはプロモーションが含まれています。

NECルータIX2215の初期設定の手順を知りたい。
・具体的なコマンドを丁寧に教えてほしい。

こういった疑問に答えます。

本記事の内容

  1. NECルータIX2215の初期設定

サトナカ (@souiunogaii)

この記事を書いている私は、某SIerに勤務しながら、
WEB系エンジニア・インフラエンジニアに憧れて、プログラミングおよびインフラ技術の勉強をしています。

こういった私が、解説していきます。

私が実機で試したコマンドや画像を載せて書いています。
記事の信頼性担保に繋がると思います。

NECルータ UNIVERGE IX2000シリーズ

型式 発売時期 特徴
IX2310 2021年4月 10/100/1000/2.5G/5G/10GBASE-Tポートを4ポート、
USBポートを1ポート持つ
10ギガビット回線対応ルータ
IX2235 2020年12月 10/100/1000BASE-Tポートを10ポート、
USBポートを各1ポート持つ
ギガビット回線対応ルータ
ワイヤレスWAN通信などの多彩な回線サービスを
利用できるオールインワンタイプ
IX2215 2021年11月 10/100/1000BASE-Tポートを10ポート、
BRIポートとUSBポートを各1ポート持つ
ギガビット回線対応ルータ
IX2207 2014年9月 10/100/1000BASE-Tポートを6ポート、
USBポートを2ポート持つ、
ギガビット回線とワイヤレス回線に対応したルータ
IX2106 2017年11月 10/100/1000BASE-Tポートを5ポート持つ
ギガビット回線対応ハイパフォーマンスルータ

jpn.nec.com

NTT-X Storeだと、「IX2215」の新品は9万円台です。

NEC 5年無償保証 VPN対応高速アクセスルータ
UNIVERGE IX2215 BI000054

NTT-X Storeだと、「IX2207」の新品は10万円台です。

NEC 5年無償保証 VPN対応高速アクセスルータ
UNIVERGE IX2207 BI000059

NTT-X Storeだと、「IX2106」の新品は約7万円です。

NEC 5年無償保証 VPN対応高速アクセスルータ
UNIVERGE IX2106 BI000087

新品にこだわりがなければ、「IX2215」の中古なら、Amazon楽天で探すと、1万円以下でも見つかります。

日本電気 5年無償保証 VPN対応高速アクセスルータ
UNIVERGE IX2215 BE110711

一方で、1世代前の「IX2105」の中古なら、Amazon楽天で探すと、約5000円ほどで見つかります。

日本電気 5年無償保証 VPN対応高速アクセスルータ
UNIVERGE IX2105 BE108821

NECルータIX2215の初期設定(その1)

手順その①:コンソールケーブルでPCと接続

PCとIX2215を、コンソールケーブルで接続します。

IX2215の「CONSOLE」に挿します。(RJ-45コネクタは形がLANポートと同じですが、上下が逆さまになっています。

私の環境では、PC側にCOMポートに対応するDB-9コネクタが無い(最近のPCには普通は無い)ので、
USBタイプのケーブルを購入しました。

Cisco互換ケーブル」で検索すると、Amazonでも楽天でもすぐ見つかります。

【CISCO互換ケーブル】
FTDI chipset USB RJ45 コンソールケーブル

手順その②:IX2215の電源ON

背面のスイッチで、電源ONします。

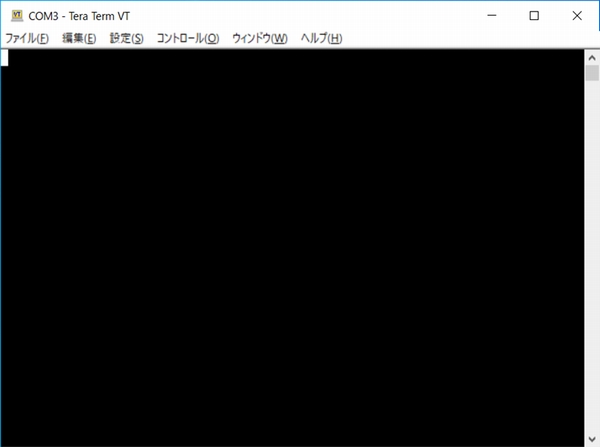

手順その③:TeraTermで接続

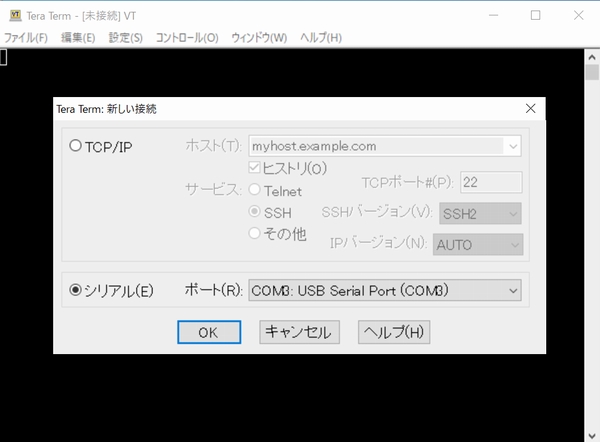

「シリアル」の方で、コンソールケーブルをつないでいるCOMポートが選択されているのを確認して「OK」

手順その④:IX2215のスーパーリセット

一度、電源OFFし、再度、電源ONします。

「Loading」の途中で、Ctrl + C で中断します。

NEC Diagnostic Software
Copyright (c) NEC Corporation 2001-2013. All rights reserved.

%DIAG-INFO: Starting System POST(Power On Self Test)

               DRAM TEST 1: Pass
               DRAM TEST 2: Pass
                NVRAM TEST: Pass
                  CPU TEST: Pass
                  PLD TEST: Pass
                  GE0 TEST: Pass
                  GE1 TEST: Pass
       GE2(SW-HUB)1-8 TEST: Pass
                  BRI TEST: Pass
                  USB TEST: Pass
        1.0 VOLTAGE STATUS: 0.987V Pass
        1.5 VOLTAGE STATUS: 1.481V Pass
        2.5 VOLTAGE STATUS: 2.457V Pass
        3.3 VOLTAGE STATUS: 3.234V Pass
        5.0 VOLTAGE STATUS: 4.940V Pass
        TEMPERATURE STATUS: +26.0degC Pass

NEC Bootstrap Software
Copyright (c) NEC Corporation 2001-2013. All rights reserved.

%BOOT-INFO: Trying flash load, exec-image [ix2215-ms-8.10.11.ldc].
Loading: ######################################################################  #
NEC Bootstrap Software, Version 3.2
Copyright (c) NEC Corporation 2001-2013. All rights reserved.
boot[0]>

cc を入力して、y を入力すると、スーパーリセットが出来ます。

boot[0]> cc
Enter "Y" to clear startup configuration: y
% Startup configuration is cleared.

NEC Bootstrap Software, Version 3.2
Copyright (c) NEC Corporation 2001-2013. All rights reserved.

b を入力すると、ルーターが再起動します。

boot[0]> b

NEC Bootstrap Software
Copyright (c) NEC Corporation 2001-2013. All rights reserved.

%BOOT-INFO: Trying flash load, exec-image [ix2215-ms-8.10.11.ldc].
Loading: ############################################################################ [OK]


Starting at 0x20000

Configuring router subsystems (before IDB proc): done.
Constructing IDB(Interface Database): done.
Configuring router subsystems (after IDB proc): done.
Initializing router subsystems: done.
Starting router subsystems: done.

All router subsystems coming up.



NEC Portable Internetwork Core Operating System Software
Copyright Notices:
Copyright (c) NEC Corporation 2001-2013. All rights reserved.
Copyright (c) 1985-1998 OpenROUTE Networks, Inc.
Copyright (c) 1984-1987, 1989 J. Noel Chiappa.
Router#

手順その⑤:オペレーションモードからグローバルコンフィグモードに移行

config
Router# configure
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#

手順その⑥:バージョンの確認

show version
Router(config)# show version
NEC Portable Internetwork Core Operating System Software
IX Series IX2215 (magellan-sec) Software, Version 8.10.11, RELEASE SOFTWARE
Compiled Aug 02-Fri-2013 13:34:44 JST #2 by sw-build, coregen-8.10(11)

ROM: System Bootstrap, Version 3.2
System Diagnostic, Version 3.2
Initialization Program, Version 3.1

System uptime is 11 minutes
System woke up by reload, caused by power-on
System started at May 07-Sat-2022 16:08:01 JST
System image file is "ix2215-ms-8.10.11.ldc"

Processor board ID <0>
IX2215 (P1010E) processor with 262144K bytes of memory.
3 GigaEthernet/IEEE 802.3 interfaces
1 ISDN Basic Rate interface
1 USB interface
1024K bytes of non-volatile configuration memory.
32768K bytes of processor board System flash (Read/Write)

手順その⑦:ホスト名の設定

デフォルト(初期値)は「Router」になっているホスト名を変更します。

hostname ホスト名
Router(config)# hostname RT-Halley
RT-Halley(config)#

手順その⑧:ログイン名とパスワードの設定

username  [ログイン名]  password plain 1 [パスワード] administrator
RT-Halley(config)# username ○○○○○○○ password plain 1 ★★★★★★★★★ administrator
% User '○○○○○○○' has been added.
RT-Halley(config)#

手順その⑨:NTPの設定と時刻の確認

ntp interval 3600
ntp retry 10
ntp server [IPアドレス]
RT-Halley(config)# ntp interval 3600
RT-Halley(config)# ntp retry 10
RT-Halley(config)# ntp server 210.173.160.27
RT-Halley(config)# ntp server 210.173.160.57
RT-Halley(config)# ntp server 210.173.160.87

www.mfeed.ad.jp

  • ntp1.jst.mfeed.ad.jp (210.173.160.27)
  • ntp2.jst.mfeed.ad.jp (210.173.160.57)
  • ntp3.jst.mfeed.ad.jp (210.173.160.87)

NTPの同期状況の確認

show ntp
RT-Halley(config)# show ntp
NTP status:
  Clock is synchronized, reference is 210.173.160.27
    Rcvd: 0 requests, 1 responses
    Sent: 1 requests, 0 responses
  NTP server                                   St  Ver   Timeout   Last Receive
  210.173.160.27                                2    3        64       22:09:30
  210.173.160.57                                0    0        64       0:00:00
  210.173.160.87                                0    0        64       0:00:00
show clock
RT-Halley(config)# show clock
Saturday, 7 May 2022 16:28:17 +09 00

手順その⑩:LANインターフェースの設定(GE2 SW-HUB)

LANポート(GE2 SW-HUB)のスピードとオートネゴシエーションauto にしておきます。

device GigaEthernet2
speed auto
duplex auto
RT-Halley(config)# device GigaEthernet2
RT-Halley(config-GigaEthernet2)# speed auto
RT-Halley(config-GigaEthernet2)# duplex auto
RT-Halley(config-GigaEthernet2)# exit

LANポート(GE2 SW-HUB)のIPアドレスを設定します。

interface GigaEthernet2.0
ip address 192.168.100.254/24
no shutdown
RT-Halley(config)# interface GigaEthernet2.0
RT-Halley(config-GigaEthernet2.0)# ip address 192.168.100.254/24
RT-Halley(config-GigaEthernet2.0)# no shutdown
RT-Halley(config-GigaEthernet2.0)# exit

コンフィグの設定を保存します。

write memory
RT-Halley(config)# write memory
Building configuration...
% Warning: do NOT enter CNTL/Z while saving to avoid config corruption.

手順その⑪:コンフィグ設定内容の確認

show running-config
RT-Halley(config)# show running-config
Current configuration : 1054 bytes

! NEC Portable Internetwork Core Operating System Software
! IX Series IX2215 (magellan-sec) Software, Version 8.10.11, RELEASE SOFTWARE
! Compiled Aug 02-Fri-2013 13:34:44 JST #2
! Current time May 07-Sat-2022 16:40:21 JST
!
!
hostname RT-Halley
timezone +09 00
!
!
!
username ○○○○○○○○○○○ password hash ★★★★★★★★★★★ administrator
!
!
device GigaEthernet0
!
device GigaEthernet1
!
device GigaEthernet2
!
device BRI0
  isdn switch-type hsd128k
!
device USB0
  shutdown
!
interface GigaEthernet0.0
  no ip address
  shutdown
!
interface GigaEthernet1.0
  no ip address
  shutdown
!
interface GigaEthernet2.0
  ip address 192.168.100.254/24
  no shutdown
!
interface BRI0.0
  encapsulation ppp
  no auto-connect
  no ip address
  shutdown
!
interface USB-Serial0.0
  encapsulation ppp
  no auto-connect
  no ip address
  shutdown
!
interface Loopback0.0
  no ip address
!
interface Null0.0
  no ip address

手順その⑪:コンフィグのチェック

RT-Halley(config)# check configuration
Check access-list configuration
  [IPSec autokey-map]
    No error
  [IPSec dynamic-map]
    No error
  [route-map]
    No error
  [class-map]
    No error
  [IPv4 filter]
    No error
Check ppp-profile configuration
  Profile name is not bound on BRI0.0
  Profile name is not bound on USB-Serial0.0
RT-Halley(config)#

少し長くなったので、続きは別の記事に書きます。
