・AlmaLinux8 にPostfixをインストールしてメール送信する方法を知りたい。
・具体的な手順を分かりやすく教えてほしい。
こういった疑問に答えます。
本記事の内容
- AlmaLinux8とPostfixを使ってメール送信できるサーバーを構築
この記事を書いている私は、某SIerに勤務しながら、
WEB系エンジニア・インフラエンジニアに憧れて、プログラミングおよびインフラ技術の勉強をしています。
こういった私が、解説していきます。
私が実機で試したコマンドや画像を載せて書いています。
記事の信頼性担保に繋がると思います。
AlmaLinux8とPostfixを使ってメール送信できるサーバーを構築
手順① Postfixのインストール
dnf -y install postfix
[root@SV-VEGA ~]# dnf -y install postfix メタデータの期限切れの最終確認: 0:02:57 前の 2023年09月05日 07時37分08秒 に実施しました。 依存関係が解決しました。 ==================================================================================================== パッケージ アーキテクチャー バージョン リポジトリー サイズ ==================================================================================================== インストール: postfix x86_64 2:3.5.8-4.el8 baseos 1.5 M トランザクションの概要 ==================================================================================================== インストール 1 パッケージ ダウンロードサイズの合計: 1.5 M インストール後のサイズ: 4.3 M パッケージのダウンロード: postfix-3.5.8-4.el8.x86_64.rpm 5.9 MB/s | 1.5 MB 00:00 ---------------------------------------------------------------------------------------------------- 合計 1.8 MB/s | 1.5 MB 00:00 トランザクションの確認を実行中 トランザクションの確認に成功しました。 トランザクションのテストを実行中 トランザクションのテストに成功しました。 トランザクションを実行中 準備 : 1/1 scriptletの実行中: postfix-2:3.5.8-4.el8.x86_64 1/1 インストール中 : postfix-2:3.5.8-4.el8.x86_64 1/1 scriptletの実行中: postfix-2:3.5.8-4.el8.x86_64 1/1 検証 : postfix-2:3.5.8-4.el8.x86_64 1/1 インストール済み: postfix-2:3.5.8-4.el8.x86_64 完了しました!
dnf list installed | grep postfix
[root@SV-VEGA ~]# dnf list installed | grep postfix postfix.x86_64 2:3.5.8-4.el8 @baseos
手順② デフォルト設定の確認
postconf -n
[root@SV-VEGA ~]# postconf -n alias_database = hash:/etc/aliases alias_maps = hash:/etc/aliases command_directory = /usr/sbin compatibility_level = 2 daemon_directory = /usr/libexec/postfix data_directory = /var/lib/postfix debug_peer_level = 2 debugger_command = PATH=/bin:/usr/bin:/usr/local/bin:/usr/X11R6/bin ddd $daemon_directory/$process_name $process_id & sleep 5 html_directory = no inet_interfaces = localhost inet_protocols = all mail_owner = postfix mailq_path = /usr/bin/mailq.postfix manpage_directory = /usr/share/man meta_directory = /etc/postfix mydestination = $myhostname, localhost.$mydomain, localhost newaliases_path = /usr/bin/newaliases.postfix queue_directory = /var/spool/postfix readme_directory = /usr/share/doc/postfix/README_FILES sample_directory = /usr/share/doc/postfix/samples sendmail_path = /usr/sbin/sendmail.postfix setgid_group = postdrop shlib_directory = /usr/lib64/postfix smtp_tls_CAfile = /etc/pki/tls/certs/ca-bundle.crt smtp_tls_CApath = /etc/pki/tls/certs smtp_tls_security_level = may smtpd_tls_cert_file = /etc/pki/tls/certs/postfix.pem smtpd_tls_key_file = /etc/pki/tls/private/postfix.key smtpd_tls_security_level = may unknown_local_recipient_reject_code = 550
cd /etc/postfix
[root@SV-VEGA ~]# cd /etc/postfix [root@SV-VEGA postfix]# ls -l 合計 220 -rw-r--r-- 1 root root 21111 9月 8 2019 access -rw-r--r-- 1 root root 13194 6月 4 2018 canonical -rw-r--r-- 1 root root 60 4月 13 2022 dynamicmaps.cf drwxr-xr-x 2 root root 6 4月 13 2022 dynamicmaps.cf.d -rw-r--r-- 1 root root 10221 9月 17 2016 generic -rw-r--r-- 1 root root 23802 10月 9 2016 header_checks -rw-r--r-- 1 root root 29369 4月 13 2022 main.cf -rw-r--r-- 1 root root 29130 4月 13 2022 main.cf.proto -rw-r--r-- 1 root root 6372 4月 13 2022 master.cf -rw-r--r-- 1 root root 6372 4月 13 2022 master.cf.proto -rw-r--r-- 1 root root 20163 4月 13 2022 postfix-files drwxr-xr-x 2 root root 6 4月 13 2022 postfix-files.d -rw-r--r-- 1 root root 6929 2月 14 2016 relocated -rw-r--r-- 1 root root 13436 1月 11 2020 transport -rw-r--r-- 1 root root 13963 6月 4 2018 virtual
手順③ main.cfの編集
[root@SV-VEGA postfix]# cp -p /etc/postfix/main.cf /etc/postfix/main.cf.original_bk
vi /etc/postfix/main.cf
myhostname
87 # INTERNET HOST AND DOMAIN NAMES 88 # 89 # The myhostname parameter specifies the internet hostname of this 90 # mail system. The default is to use the fully-qualified domain name 91 # from gethostname(). $myhostname is used as a default value for many 92 # other configuration parameters. 93 # 94 #myhostname = host.domain.tld 95 #myhostname = virtual.domain.tld 96 myhostname = sv-vega.planet.space.com ←★★変更
mydomain
98 # The mydomain parameter specifies the local internet domain name. 99 # The default is to use $myhostname minus the first component. 100 # $mydomain is used as a default value for many other configuration 101 # parameters. 102 # 103 #mydomain = domain.tld 104 mydomain = space.com ←★★変更
inet_interfaces
122 # RECEIVING MAIL 123 124 # The inet_interfaces parameter specifies the network interface 125 # addresses that this mail system receives mail on. By default, 126 # the software claims all active interfaces on the machine. The 127 # parameter also controls delivery of mail to user@[ip.address]. 128 # 129 # See also the proxy_interfaces parameter, for network addresses that 130 # are forwarded to us via a proxy or network address translator. 131 # 132 # Note: you need to stop/start Postfix when this parameter changes. 133 # 134 #inet_interfaces = all 135 #inet_interfaces = $myhostname 136 #inet_interfaces = $myhostname, localhost 137 inet_interfaces = localhost ←★★変更
inet_protocols
139 # Enable IPv4, and IPv6 if supported
140 inet_protocols = ipv4 ←★★変更
masquerade_domains
742 masquerade_domains = space.com ←★★変更
確認
[root@SV-VEGA postfix]# postconf -n [root@SV-VEGA postfix]# postfix check
postfixを再起動して設定を反映
systemctl restart postfix
systemctl status postfix
[root@SV-VEGA postfix]# systemctl restart postfix [root@SV-VEGA postfix]# systemctl status postfix ● postfix.service - Postfix Mail Transport Agent Loaded: loaded (/usr/lib/systemd/system/postfix.service; disabled; vendor preset: disabled) Active: active (running) since Tue 2023-09-05 07:56:48 JST; 10s ago Process: 6459 ExecStart=/usr/sbin/postfix start (code=exited, status=0/SUCCESS) Process: 6456 ExecStartPre=/usr/libexec/postfix/chroot-update (code=exited, status=0/SUCCESS) Process: 6451 ExecStartPre=/usr/libexec/postfix/aliasesdb (code=exited, status=0/SUCCESS) Process: 6449 ExecStartPre=/usr/sbin/restorecon -R /var/spool/postfix/pid/master.pid (code=exited> Main PID: 6527 (master) Tasks: 3 (limit: 24822) Memory: 5.0M CGroup: /system.slice/postfix.service tq6527 /usr/libexec/postfix/master -w tq6528 pickup -l -t unix -u mq6529 qmgr -l -t unix -u 9月 05 07:56:48 SV-VEGA systemd[1]: Starting Postfix Mail Transport Agent... 9月 05 07:56:48 SV-VEGA postfix/master[6527]: daemon started -- version 3.5.8, configuration /etc/> 9月 05 07:56:48 SV-VEGA systemd[1]: Started Postfix Mail Transport Agent.
手順④ 自動起動の設定
systemctl enable postfix
[root@SV-VEGA postfix]# systemctl enable postfix Created symlink /etc/systemd/system/multi-user.target.wants/postfix.service → /usr/lib/systemd/system/postfix.service.
手順⑤ 送信の確認
telnetインストール
dnf -y install telnet
[root@SV-VEGA postfix]# dnf -y install telnet メタデータの期限切れの最終確認: 0:20:45 前の 2023年09月05日 07時37分08秒 に実施しました。 依存関係が解決しました。 ==================================================================================================== パッケージ アーキテクチャー バージョン リポジトリー サイズ ==================================================================================================== インストール: telnet x86_64 1:0.17-76.el8 appstream 71 k トランザクションの概要 ==================================================================================================== インストール 1 パッケージ ダウンロードサイズの合計: 71 k インストール後のサイズ: 119 k パッケージのダウンロード: telnet-0.17-76.el8.x86_64.rpm 754 kB/s | 71 kB 00:00 ---------------------------------------------------------------------------------------------------- 合計 135 kB/s | 71 kB 00:00 トランザクションの確認を実行中 トランザクションの確認に成功しました。 トランザクションのテストを実行中 トランザクションのテストに成功しました。 トランザクションを実行中 準備 : 1/1 インストール中 : telnet-1:0.17-76.el8.x86_64 1/1 scriptletの実行中: telnet-1:0.17-76.el8.x86_64 1/1 検証 : telnet-1:0.17-76.el8.x86_64 1/1 インストール済み: telnet-1:0.17-76.el8.x86_64 完了しました!
telnetで25番ポートに接続
[root@SV-VEGA postfix]# telnet localhost 25 Trying ::1... telnet: connect to address ::1: Connection refused Trying 127.0.0.1... Connected to localhost. Escape character is '^]'. 220 sv-vega.planet.space.com ESMTP Postfix
heloで応答
helo localhost
250 sv-vega.planet.space.com
mail from 送信者アドレス
mail from:test1@space.com 250 2.1.0 Ok
rcpt to 受信者アドレス
rcpt to:test2@space.com 250 2.1.5 Ok
data 本文 (ピリオドで終了)
data 354 End data with <CR><LF>.<CR><LF> test . 250 2.0.0 Ok: queued as 3A79A497932
quit 切断
quit 221 2.0.0 Bye Connection closed by foreign host.
送信ログの確認
/var/log/maillog
Sep 5 08:03:32 SV-VEGA postfix/smtpd[6881]: connect from localhost[127.0.0.1] Sep 5 08:04:18 SV-VEGA postfix/smtpd[6881]: A7521497932: client=localhost[127.0.0.1] Sep 5 08:04:32 SV-VEGA postfix/cleanup[6884]: A7521497932: message-id=<20230904230418.A7521497932@sv-vega.planet.space.com> Sep 5 08:04:32 SV-VEGA postfix/qmgr[6529]: A7521497932: from=<test1@space.com>, size=341, nrcpt=1 (queue active) Sep 5 08:04:32 SV-VEGA postfix/smtp[6885]: A7521497932: to=<test2@space.com>, relay=XXXXXXXXXXXX[XXX.XXX.XXX.XXX]:25, delay=28, delays=28/0.02/0.05/0.05, dsn=2.0.0, status=sent (250 2.0.0 dIcSqMqeI2DtddIcSqGbmL mail accepted for delivery)

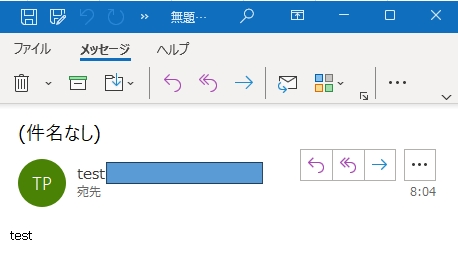

受信メールの確認
手順⑥ SPFの確認
dig @8.8.8.8 ドメイン名 txt
[root@SV-VEGA postfix]# dig @8.8.8.8 planet.space.com txt ; <<>> DiG 9.11.36-RedHat-9.11.36-8.el8_8.1 <<>> @8.8.8.8 planet.space.com txt ; (1 server found) ;; global options: +cmd ;; Got answer: ;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 27312 ;; flags: qr rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1 ;; OPT PSEUDOSECTION: ; EDNS: version: 0, flags:; udp: 512 ;; QUESTION SECTION: ;planet.space.com. IN TXT ;; ANSWER SECTION: planet.space.com. 300 IN TXT "v=spf1 +ip4:XXX.XXX.XXX.XXX a:ZZZZZZZZZZZZ a mx -all" ;; Query time: 22 msec ;; SERVER: 8.8.8.8#53(8.8.8.8) ;; WHEN: 火 9月 05 08:17:48 JST 2023 ;; MSG SIZE rcvd: 114
