・AlmaLinux 8にインストールしたApache2のサイトをHTTPS化する方法を知りたい。
・具体的な手順を分かりやすく教えてほしい。
こういった疑問に答えます。
本記事の内容
この記事を書いている私は、某SIerに勤務しながら、
WEB系エンジニア・インフラエンジニアに憧れて、プログラミングおよびインフラ技術の勉強をしています。
こういった私が、解説していきます。
私が実機で試したコマンドや画像を載せて書いています。
記事の信頼性担保に繋がると思います。
AlmaLinux 8 のApache2 環境にcertbotでLet's Encrypt SSLを利用する方法
事前準備① ホスト名からIPアドレスへの名前解決
[root@SV-ALTAIR ~]# host test01.sv-altair.planet.space.com test01.sv-altair.planet.space.com has address XXX.XXX.XXX.XXX
事前準備② firewallの許可サービスへhttpsを追加
firewall-cmd --zone=domestic --add-service=https --permanent
firewall-cmd --reload
[root@SV-ALTAIR ~]# firewall-cmd --zone=domestic --add-service=https --permanent success [root@SV-ALTAIR ~]# firewall-cmd --reload success
domestic (active) target: default icmp-block-inversion: no interfaces: sources: ipset:domestic services: http https ports: protocols: forward: no masquerade: no forward-ports: source-ports: icmp-blocks: rich rules:
手順③ SSL通信用モジュールのインストール
dnf search mod_ssl
[root@SV-ALTAIR ~]# dnf search mod_ssl メタデータの期限切れの最終確認: 1:22:34 前の 2023年09月01日 19時36分58秒 に実施しました。 ====================================== 名前 完全一致: mod_ssl ====================================== mod_ssl.x86_64 : SSL/TLS module for the Apache HTTP Server ==================================== 名前 & 概要 一致: mod_ssl ===================================== certwatch-mod_ssl.x86_64 : SSL/TLS certificate expiry warnings for mod_ssl
dnf info mod_ssl
[root@SV-ALTAIR ~]# dnf info mod_ssl メタデータの期限切れの最終確認: 1:22:54 前の 2023年09月01日 19時36分58秒 に実施しました。 利用可能なパッケージ 名前 : mod_ssl エポック : 1 バージョン : 2.4.37 リリース : 56.module_el8.8.0+3560+c8e5e57e.6 Arch : x86_64 サイズ : 139 k ソース : httpd-2.4.37-56.module_el8.8.0+3560+c8e5e57e.6.src.rpm リポジトリー : appstream 概要 : SSL/TLS module for the Apache HTTP Server URL : https://httpd.apache.org/ ライセンス : ASL 2.0 説明 : The mod_ssl module provides strong cryptography for the Apache Web : server via the Secure Sockets Layer (SSL) and Transport Layer : Security (TLS) protocols.
dnf install -y mod_ssl
[root@SV-ALTAIR ~]# dnf install -y mod_ssl メタデータの期限切れの最終確認: 1:23:10 前の 2023年09月01日 19時36分58秒 に実施しました。 依存関係が解決しました。 ==================================================================================================== パッケージ Arch バージョン リポジトリー サイズ ==================================================================================================== インストール: mod_ssl x86_64 1:2.4.37-56.module_el8.8.0+3560+c8e5e57e.6 appstream 139 k 依存関係のインストール: sscg x86_64 3.0.0-7.el8 appstream 51 k トランザクションの概要 ==================================================================================================== インストール 2 パッケージ ダウンロードサイズの合計: 190 k インストール後のサイズ: 369 k パッケージのダウンロード: (1/2): sscg-3.0.0-7.el8.x86_64.rpm 651 kB/s | 51 kB 00:00 (2/2): mod_ssl-2.4.37-56.module_el8.8.0+3560+c8e5e57e.6.x86_64.rpm 1.1 MB/s | 139 kB 00:00 ---------------------------------------------------------------------------------------------------- 合計 212 kB/s | 190 kB 00:00 トランザクションの確認を実行中 トランザクションの確認に成功しました。 トランザクションのテストを実行中 トランザクションのテストに成功しました。 トランザクションを実行中 準備 : 1/1 インストール中 : sscg-3.0.0-7.el8.x86_64 1/2 インストール中 : mod_ssl-1:2.4.37-56.module_el8.8.0+3560+c8e5e57e.6.x86_64 2/2 scriptletの実行中: mod_ssl-1:2.4.37-56.module_el8.8.0+3560+c8e5e57e.6.x86_64 2/2 検証 : mod_ssl-1:2.4.37-56.module_el8.8.0+3560+c8e5e57e.6.x86_64 1/2 検証 : sscg-3.0.0-7.el8.x86_64 2/2 インストール済み: mod_ssl-1:2.4.37-56.module_el8.8.0+3560+c8e5e57e.6.x86_64 sscg-3.0.0-7.el8.x86_64 完了しました!
確認
dnf list installed | grep mod_ssl
[root@SV-ALTAIR ~]# dnf list installed | grep mod_ssl mod_ssl.x86_64 1:2.4.37-56.module_el8.8.0+3560+c8e5e57e.6 @appstream
httpd -M | grep ssl
[root@SV-ALTAIR ~]# httpd -M | grep ssl AH00526: Syntax error on line 85 of /etc/httpd/conf.d/ssl.conf: SSLCertificateFile: file '/etc/pki/tls/certs/localhost.crt' does not exist or is empty
[root@SV-ALTAIR ~]# systemctl restart httpd [root@SV-ALTAIR ~]# httpd -M | grep ssl ssl_module (shared)
手順④ snapd のインストール
dnf install -y snapd
[root@SV-ALTAIR ~]# dnf install -y snapd メタデータの期限切れの最終確認: 1:54:15 前の 2023年09月01日 19時36分58秒 に実施しました。 依存関係が解決しました。 ==================================================================================================== パッケージ Arch バージョン リポジトリー サイズ ==================================================================================================== インストール: snapd x86_64 2.58.3-1.el8 epel 17 M 依存関係のインストール: checkpolicy x86_64 2.9-1.el8 baseos 347 k policycoreutils-python-utils noarch 2.9-24.el8 baseos 253 k python3-audit x86_64 3.0.7-4.el8 baseos 86 k python3-libsemanage x86_64 2.9-9.el8_6 baseos 127 k python3-policycoreutils noarch 2.9-24.el8 baseos 2.2 M python3-setools x86_64 4.3.0-3.el8 baseos 623 k snap-confine x86_64 2.58.3-1.el8 epel 3.5 M snapd-selinux noarch 2.58.3-1.el8 epel 553 k トランザクションの概要 ==================================================================================================== インストール 9 パッケージ ダウンロードサイズの合計: 25 M インストール後のサイズ: 69 M パッケージのダウンロード: (1/9): policycoreutils-python-utils-2.9-24.el8.noarch.rpm 738 kB/s | 253 kB 00:00 (2/9): python3-audit-3.0.7-4.el8.x86_64.rpm 186 kB/s | 86 kB 00:00 (3/9): checkpolicy-2.9-1.el8.x86_64.rpm 484 kB/s | 347 kB 00:00 (4/9): python3-libsemanage-2.9-9.el8_6.x86_64.rpm 238 kB/s | 127 kB 00:00 (5/9): snap-confine-2.58.3-1.el8.x86_64.rpm 7.7 MB/s | 3.5 MB 00:00 (6/9): snapd-2.58.3-1.el8.x86_64.rpm 8.8 MB/s | 17 MB 00:01 (7/9): snapd-selinux-2.58.3-1.el8.noarch.rpm 5.1 MB/s | 553 kB 00:00 (8/9): python3-setools-4.3.0-3.el8.x86_64.rpm 131 kB/s | 623 kB 00:04 (9/9): python3-policycoreutils-2.9-24.el8.noarch.rpm 206 kB/s | 2.2 MB 00:11 ---------------------------------------------------------------------------------------------------- 合計 1.9 MB/s | 25 MB 00:12 トランザクションの確認を実行中 トランザクションの確認に成功しました。 トランザクションのテストを実行中 トランザクションのテストに成功しました。 トランザクションを実行中 準備 : 1/1 インストール中 : snap-confine-2.58.3-1.el8.x86_64 1/9 インストール中 : python3-setools-4.3.0-3.el8.x86_64 2/9 インストール中 : python3-libsemanage-2.9-9.el8_6.x86_64 3/9 インストール中 : python3-audit-3.0.7-4.el8.x86_64 4/9 インストール中 : checkpolicy-2.9-1.el8.x86_64 5/9 インストール中 : python3-policycoreutils-2.9-24.el8.noarch 6/9 インストール中 : policycoreutils-python-utils-2.9-24.el8.noarch 7/9 scriptletの実行中: snapd-selinux-2.58.3-1.el8.noarch 8/9 インストール中 : snapd-selinux-2.58.3-1.el8.noarch 8/9 scriptletの実行中: snapd-selinux-2.58.3-1.el8.noarch 8/9 インストール中 : snapd-2.58.3-1.el8.x86_64 9/9 scriptletの実行中: snapd-2.58.3-1.el8.x86_64 9/9 scriptletの実行中: snapd-selinux-2.58.3-1.el8.noarch 9/9 scriptletの実行中: snapd-2.58.3-1.el8.x86_64 9/9 検証 : checkpolicy-2.9-1.el8.x86_64 1/9 検証 : policycoreutils-python-utils-2.9-24.el8.noarch 2/9 検証 : python3-audit-3.0.7-4.el8.x86_64 3/9 検証 : python3-libsemanage-2.9-9.el8_6.x86_64 4/9 検証 : python3-policycoreutils-2.9-24.el8.noarch 5/9 検証 : python3-setools-4.3.0-3.el8.x86_64 6/9 検証 : snap-confine-2.58.3-1.el8.x86_64 7/9 検証 : snapd-2.58.3-1.el8.x86_64 8/9 検証 : snapd-selinux-2.58.3-1.el8.noarch 9/9 インストール済み: checkpolicy-2.9-1.el8.x86_64 policycoreutils-python-utils-2.9-24.el8.noarch python3-audit-3.0.7-4.el8.x86_64 python3-libsemanage-2.9-9.el8_6.x86_64 python3-policycoreutils-2.9-24.el8.noarch python3-setools-4.3.0-3.el8.x86_64 snap-confine-2.58.3-1.el8.x86_64 snapd-2.58.3-1.el8.x86_64 snapd-selinux-2.58.3-1.el8.noarch 完了しました!
systemctl start snapd.socket
systemctl status snapd.socket
[root@SV-ALTAIR ~]# systemctl start snapd.socket [root@SV-ALTAIR ~]# systemctl status snapd.socket ● snapd.socket - Socket activation for snappy daemon Loaded: loaded (/usr/lib/systemd/system/snapd.socket; enabled; vendor preset: disabled) Active: active (running) since Fri 2023-09-01 21:32:23 JST; 3min 26s ago Listen: /run/snapd.socket (Stream) /run/snapd-snap.socket (Stream) Tasks: 0 (limit: 24824) Memory: 4.0K CGroup: /system.slice/snapd.socket 9月 01 21:32:23 SV-ALTAIR systemd[1]: Starting Socket activation for snappy daemon. 9月 01 21:32:23 SV-ALTAIR systemd[1]: Listening on Socket activation for snappy daemon.
systemctl enable --now snapd.socket
[root@SV-ALTAIR ~]# systemctl enable --now snapd.socket Created symlink /etc/systemd/system/sockets.target.wants/snapd.socket → /usr/lib/systemd/system/snapd.socket.
[root@SV-ALTAIR ~]# ln -s /var/lib/snapd/snap /snap
snap install core
[root@SV-ALTAIR ~]# snap install core core 16-2.60.2 from Canonical? installed
snap refresh core
[root@SV-ALTAIR ~]# snap refresh core snap "core" has no updates available
手順⑤ certbotのインストール
snap install --classic certbot
[root@SV-ALTAIR ~]# snap install --classic certbot 2023-09-01T21:34:02+09:00 INFO Waiting for automatic snapd restart... certbot 2.6.0 from Certbot Project (certbot-eff?) installed
ln -s /snap/bin/certbot /usr/bin/certbot
[root@SV-ALTAIR ~]# ln -s /snap/bin/certbot /usr/bin/certbot
certbot --version
[root@SV-ALTAIR ~]# certbot --version certbot 2.6.0
手順⑥ SSL証明書の作成
証明書の作成時に、httpサービスを利用するので、一時的に、firewallのpublicゾーンにhttpを追加します。
[root@SV-ALTAIR ~]# firewall-cmd --zone=public --add-service=http success
certbot --apache
[root@SV-ALTAIR ~]# certbot --apache Saving debug log to /var/log/letsencrypt/letsencrypt.log Enter email address (used for urgent renewal and security notices) (Enter 'c' to cancel): webmaster@space.com ←★★最初だけ入力が必要 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Please read the Terms of Service at https://letsencrypt.org/documents/LE-SA-v1.3-September-21-2022.pdf. You must agree in order to register with the ACME server. Do you agree? - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - (Y)es/(N)o: Y ←★★最初だけ入力が必要 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Would you be willing, once your first certificate is successfully issued, to share your email address with the Electronic Frontier Foundation, a founding partner of the Let's Encrypt project and the non-profit organization that develops Certbot? We'd like to send you email about our work encrypting the web, EFF news, campaigns, and ways to support digital freedom. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - (Y)es/(N)o: Y ←★★最初だけ入力が必要 Account registered. Which names would you like to activate HTTPS for? We recommend selecting either all domains, or all domains in a VirtualHost/server block. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1: test01.sv-altair.planet.space.com 2: www.test01.sv-altair.planet.space.com 3: test02.sv-altair.planet.space.com 4: www.test02.sv-altair.planet.space.com - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Select the appropriate numbers separated by commas and/or spaces, or leave input blank to select all options shown (Enter 'c' to cancel): 1 ←★★数字で入力 Requesting a certificate for test01.sv-altair.planet.space.com Successfully received certificate. Certificate is saved at: /etc/letsencrypt/live/test01.sv-altair.planet.space.com/fullchain.pem Key is saved at: /etc/letsencrypt/live/test01.sv-altair.planet.space.com/privkey.pem This certificate expires on 2023-11-30. These files will be updated when the certificate renews. Certbot has set up a scheduled task to automatically renew this certificate in the background. Deploying certificate Successfully deployed certificate for test01.sv-altair.planet.space.com to /etc/httpd/conf.d/test01.sv-altair.planet.space.com-le-ssl.conf Congratulations! You have successfully enabled HTTPS on https://test01.sv-altair.planet.space.com - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - If you like Certbot, please consider supporting our work by: * Donating to ISRG / Let's Encrypt: https://letsencrypt.org/donate * Donating to EFF: https://eff.org/donate-le - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
最後に、Congratulations! You have successfully
と表示されたら成功です。
確認
[root@SV-ALTAIR test01.sv-altair.planet.space.com]# ls -l 合計 4 -rw-r--r-- 1 root root 692 9月 1 22:01 README lrwxrwxrwx 1 root root 59 9月 1 22:01 cert.pem -> ../../archive/test01.sv-altair.planet.space.com/cert1.pem lrwxrwxrwx 1 root root 60 9月 1 22:01 chain.pem -> ../../archive/test01.sv-altair.planet.space.com/chain1.pem lrwxrwxrwx 1 root root 64 9月 1 22:01 fullchain.pem -> ../../archive/test01.sv-altair.planet.space.com/fullchain1.pem lrwxrwxrwx 1 root root 62 9月 1 22:01 privkey.pem -> ../../archive/test01.sv-altair.planet.space.com/privkey1.pem
手順⑦ バーチャルホスト用confの編集
vi /etc/httpd/conf.d/test01.sv-altair.planet.space.com.conf
## VirtualHost01 test01.sv-altair.planet.space.com <VirtualHost *:80> ServerName test01.sv-altair.planet.space.com ServerAlias www.test01.sv-altair.planet.space.com ServerAdmin webmaster@test01.sv-altair.planet.space.com DocumentRoot "/home/www/html/test01" <Directory "/home/www/html/test01"> Options FollowSymLinks AllowOverride All Order deny,allow Allow from all </Directory> ErrorLog logs/test01.sv-altair.planet.space.com-error_log CustomLog logs/test01.sv-altair.planet.space.com-access_log combined RewriteEngine on RewriteCond %{SERVER_NAME} =test01.sv-altair.planet.space.com[OR] RewriteCond %{SERVER_NAME} =www.test01.sv-altairplanet.space.com RewriteRule ^ https://%{SERVER_NAME}%{REQUEST_URI} [END,NE,R=permanent] </VirtualHost> <VirtualHost *:443> Protocols h2 http/1.1 SSLEngine on ServerName test01.sv-altair.planet.space.com:443 ServerAlias www.test01.sv-altair.planet.space.com:443 SSLHonorCipherOrder on SSLCipherSuite PROFILE=SYSTEM SSLProxyCipherSuite PROFILE=SYSTEM DocumentRoot "/home/www/html/test01" SSLCertificateFile /etc/letsencrypt/live/test01.sv-altair.planet.space.com/fullchain.pem SSLCertificateKeyFile /etc/letsencrypt/live/test01.sv-altair.planet.space.com/privkey.pem <Directory "/home/www/html/test01"> Options FollowSymLinks AllowOverride All Order deny,allow Allow from all </Directory> ErrorLog logs/test01.sv-altair.planet.space.com-ssl-error_log TransferLog logs/test01.sv-altair.planet.space.com-ssl-access_log LogLevel warn </VirtualHost>
[root@SV-ALTAIR ~]# httpd -t Syntax OK
httpdを再起動して反映
[root@SV-ALTAIR ~]# systemctl restart httpd [root@SV-ALTAIR ~]# systemctl status httpd ● httpd.service - The Apache HTTP Server Loaded: loaded (/usr/lib/systemd/system/httpd.service; enabled; vendor preset: disabled) Drop-In: /etc/systemd/system/httpd.service.d mqphp-fpm.conf Active: active (running) since Fri 2023-09-01 22:07:57 JST; 3min 16s ago Docs: man:httpd.service(8) Process: 3760 ExecReload=/usr/sbin/httpd $OPTIONS -k graceful (code=exited, status=0/SUCCESS) Main PID: 4096 (httpd) Status: "Total requests: 1; Idle/Busy workers 100/0;Requests/sec: 0.00529; Bytes served/sec: 5> Tasks: 278 (limit: 24824) Memory: 43.9M CGroup: /system.slice/httpd.service tq4096 /usr/sbin/httpd -DFOREGROUND tq4097 /usr/sbin/httpd -DFOREGROUND tq4098 /usr/sbin/httpd -DFOREGROUND tq4099 /usr/sbin/httpd -DFOREGROUND tq4100 /usr/sbin/httpd -DFOREGROUND mq4313 /usr/sbin/httpd -DFOREGROUND 9月 01 22:07:57 SV-ALTAIR systemd[1]: httpd.service: Succeeded. 9月 01 22:07:57 SV-ALTAIR systemd[1]: Stopped The Apache HTTP Server. 9月 01 22:07:57 SV-ALTAIR systemd[1]: Starting The Apache HTTP Server... 9月 01 22:07:57 SV-ALTAIR systemd[1]: Started The Apache HTTP Server. 9月 01 22:07:57 SV-ALTAIR httpd[4096]: Server configured, listening on: port 443, port 80
HTTPSポートがLISTENであることを確認
ss -lt
[root@SV-ALTAIR ~]# ss -lt State Recv-Q Send-Q Local Address:Port Peer Address:Port Process LISTEN 0 511 *:http *:* LISTEN 0 511 *:https *:*

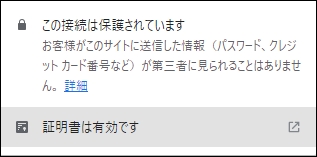

手順⑧ ブラウザで表示確認
